N5ESE's Version of Norcal BLT Tuner Kit

(click on any picture to see larger version)

NOTE: 'N5FC' is my former call.
This project was constructed while that call was valid, and you may observe references to it.

The Norcal SMK-1 Kit ia a great novelty rig and a wonderful learning experience in Surface Mount Technology. With the popularity of that kit, NORCAL asked Charlie Lofgren, W6JJZ, to design a matching tuner. At just $25, this has got to be one of the bargains of the decade in QRP accessories!

The tuner usesa Z-match circuit, which provides some bandpass filtering in addition to impedance matching. It uses a BNC connector at the input, and binding posts at the output, to connect to a balnced-feed antenna. The Z-match is best suited for balanced antennas, but I also modified mine to add a switch at the output (which grounds one side of the balanced output) and a BNC connector for connecting to coax antennas.

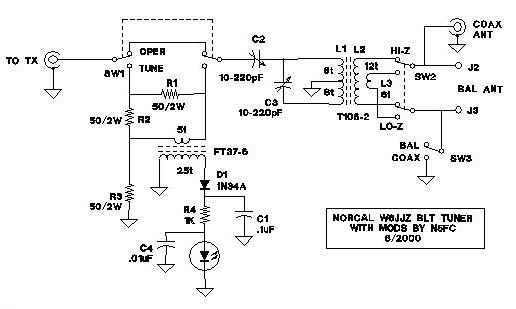

The schematic with my mods can be seen -here-.

The designer tested the tuner with a field doublet using balanced feedline, on 40 through 10 meters. I was unable to match my twinlead-fed 40 meter doublet on 10, but I had no problem with 40 through 15 Meters, although the tuning was a little touchy on 20 and 15. I attempted to match the Notebook and DCTL antennas on 40 Mters, but was unable to get a match at any setting.

I'm a little concerned with the N7VE SWR bridge. When comparing my matches on 40 meters with my Radio Shack SWR meter and my MFJ Antenna Analyzer, I found that the Rad Shack and MFJ agreed, but the BLT Tuner's null was a little off. Typically, when the BLT's LED nulled, the actual SWR was 1.2 or 1.3-to-1 (but still usable). I could, however, with the BLT in "operate", adjust the BLT tuning controls to obtain 1-to-1 SWR (as indicated by the Radio Shack SWR meter and Antenna Anayzer), but then the BLT's LED indicator was off-null. Wondering if this was a systemic problem with theis type SWR bridge, I attempted the same test with the Emtech ZM-2, and got similiar disparaging results. This may bear some looking into.

The pictures below are offered as visual aids to those building the BLT. Enjoy!

Pictures and Postings:

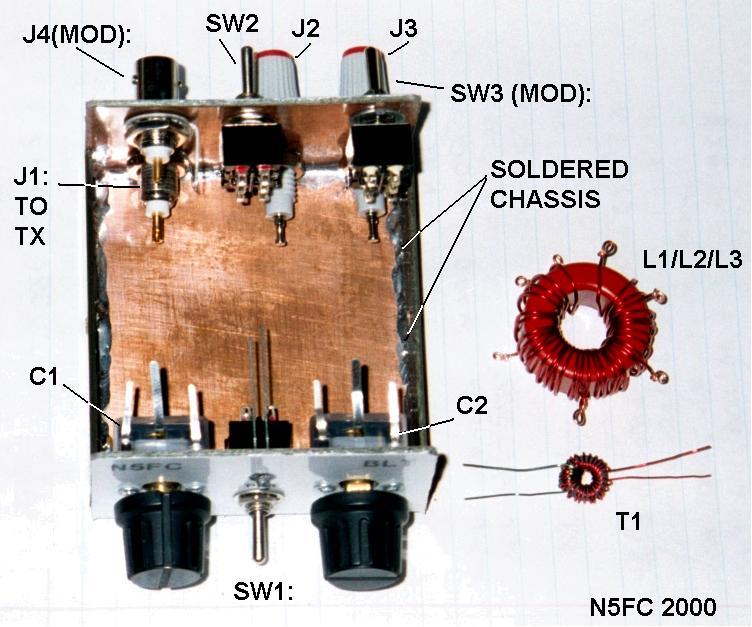

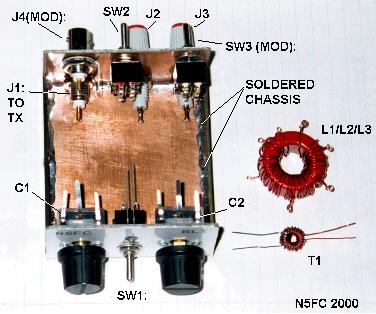

BLT, chassis and coil views, before wiring [for high-res screens, 74 Kb]
BLT, chassis and coil views, before wiring [for 640x480 screens, 26 Kb]

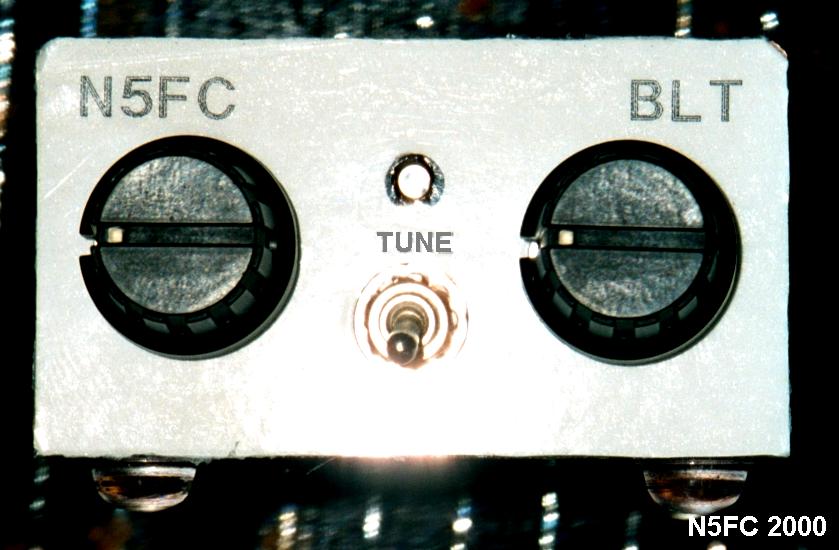

BLT Front View [for high-res screens, 60 Kb]
BLT Front View [for 640x480 screens, 21 Kb]

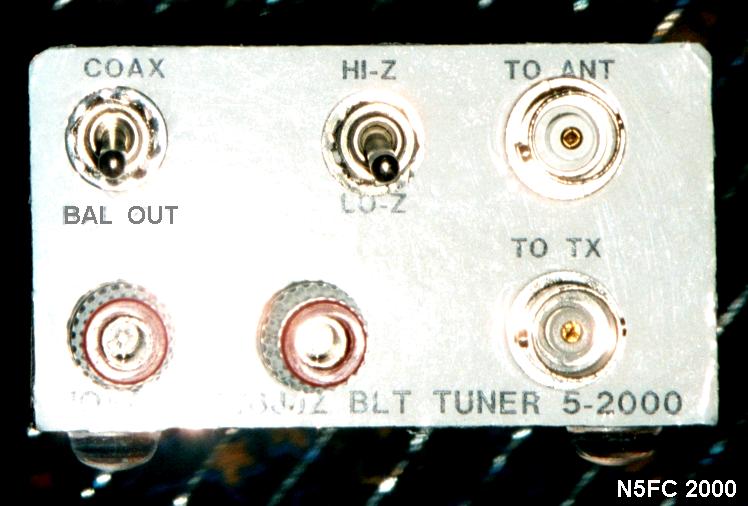

BLT Rear View [for high-res screens, 191 Kb]
BLT Rear View [for 640x480 screens, 63 Kb]

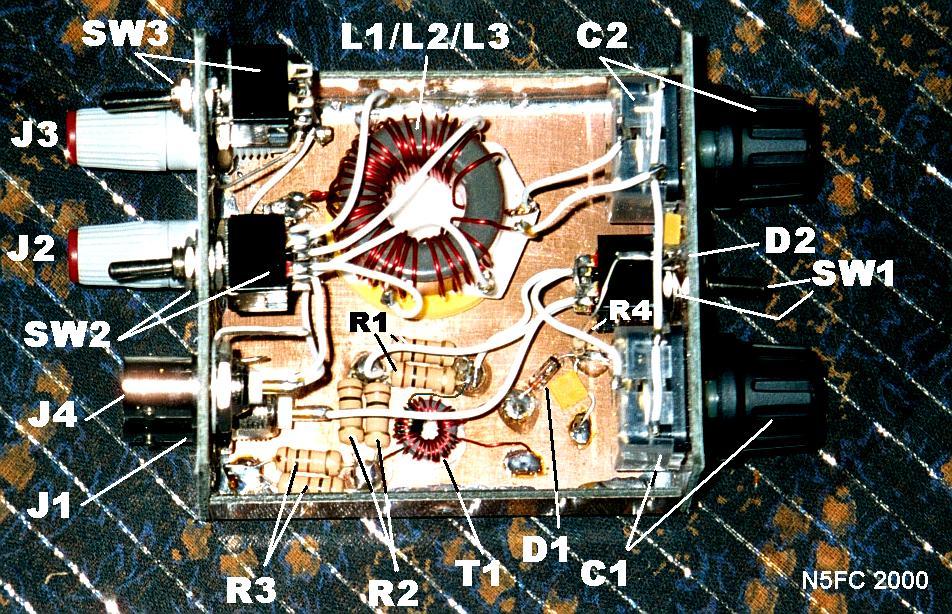

BLT Top View, annotated [for high-res screens, 191 Kb]

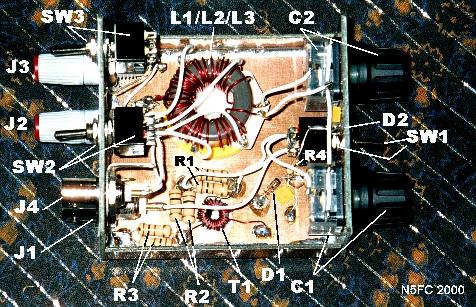

BLT Top View, annotated [for 640x480 screens, 63 Kb]

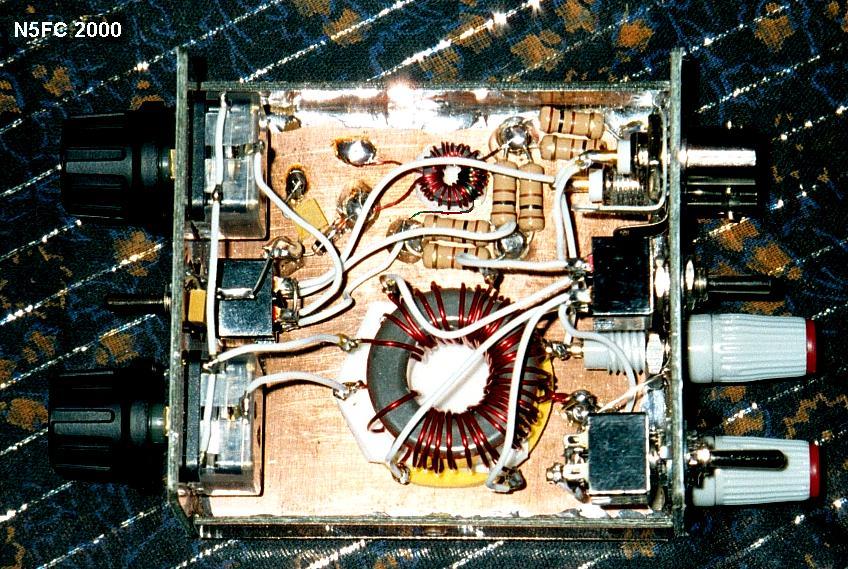

Another BLT Top View, NOT annotated [for high-res screens, 191 Kb]

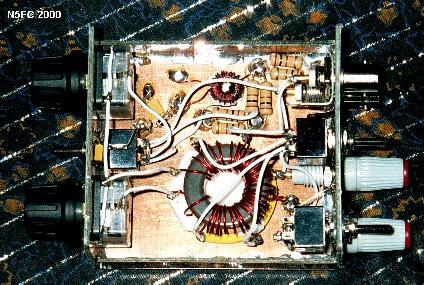

Another BLT Top View NOT annotated [for 640x480 screens, 63 Kb]

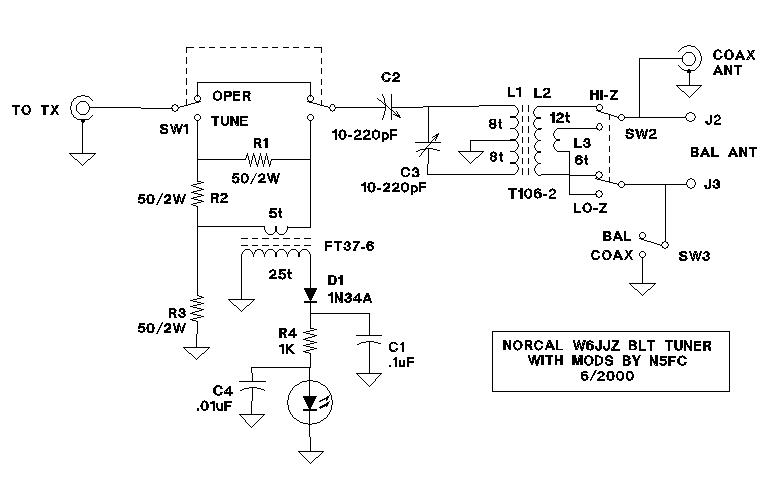

Schematic of my version BLT (i.e., with mods) [for high-res screens, 191 Kb]
Schematic of my version BLT (i.e., with mods) [for 640x480 screens, 63 Kb]
